Heat transfer silicone XG-866A-2Y

01 Feature

Heat transfer silicone characteristics: simple material, the use of silicone, the middle layer of adhesive (XG-360Z-1 silicone and hot melt adhesive bridge between the silicone and hot melt adhesive, so that the silicone and hot melt adhesive between the non-peeling, non-delamination), hot melt adhesive or hot melt powder and so on with the first through the screen screen printing to the high temperature release film, and then use the “Hot Stamping Machine” backstamping on the surface of the cloth, the surface of the carrier, suitable for cotton, cotton blends, polyester, slight silicone oil cloth or coated waterproof nylon fabrics. The surface of the carrier, applicable to cotton, cotton blends and sports fabrics.

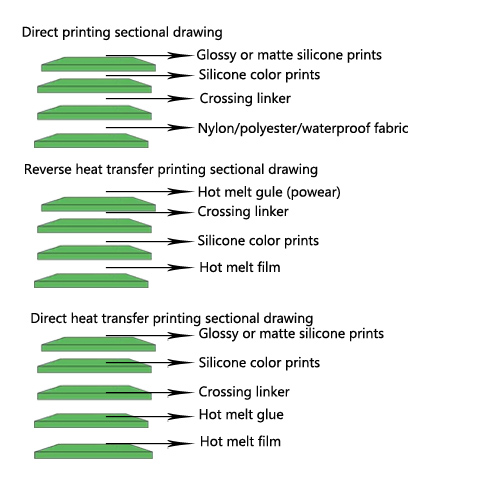

02 Process

Positive hot operation instructions

A.360R-3 hot melt adhesive printing 4-6 times, each printing should be carried out under the premise of the previous table dry, can not be dry, all printed and then baked dry.

B.3602-3 middle layer adhesive plus 5% 360-3B middle layer adhesive additives printed twice baked until the table dry.

C.transfer adhesive 866A-2Y force 13% transfer adhesive additives 866B-2 printed 3-4 times after the transparent, and then add 10% -20% color paste on the color, the printing effect depends on the effect of the sample.

D.glossy silicone 399HR or 399Q plus additives 866B-2 printed 2-3 times.

E.after printing put sealed oven 100 ℃ baked 40 minutes. f, hot stamping when stamping temperature 150 ℃ / 15 seconds can be.

Reverse stamping operation instructions

A.ransfer adhesive 866A-2Y plus additives 866B-2 plus 10% color paste on the color, the number of times to print depends on the thickness of the sample.

B.the middle layer of adhesive 3602-3 plus 5% of the middle layer of adhesive additives 3602-3B printed 2 times.

C.360R-3 hot melt adhesive printing 4-6 times, each printing should be carried out again on the premise of the last table dry, can not be dry, all printed and then baked dry.

D.after printing put sealed oven 100 ℃ bake 40 minutes.
